A. O. Smith Water Heater Pre-filter
Pre filters prevent impurities and sediments from entering your heater tank.
Starting at $425
A. O. Smith Water Heater Pre-filter
Pre filters prevent impurities and sediments from entering your heater tank.
Starting at $425
Prolongs life of water heater
Once sediments settle in your tank, corrosion begins and the enamel of the internal tank weakens. Pre filters prevent sediments from entering in the first place.
Easy, Fuss-free Maintenance
Step 1: Hold a medium sized pail beneath the filter (Ø20cm)
Step 2: Twist a lever at the base of the filter to flush out sediments for 30 seconds.
Step 3: Sediments collected in the water are not toxic. You may recycle the water.
Step 4: The filter is cleared. There is no need to purchase a new filter or to engage a specialist to replace any parts.
Sand in your bathtub?
If you live close to the sea or stay-cationed in an island resort, you may have on occasion, noticed fine sand particles while soaking in your bathtub. A pre-filter helps to clear out the water before your tub is filled.
High precision, food-grade stainless steel filter mesh
Filter mesh removes large (>100µm) impurities, sediments and rust effectively. Water quality sees an overall improvement and this extends the service life of water-related appliances.
100% fully-owned robotic plants
To maintain high quality control, A. O. Smith Corporation fully owns every of their 21 plants worldwide. They are the only manufacturer with the technology to employ robotics over 95% of their production line.
Frequently Asked Questions

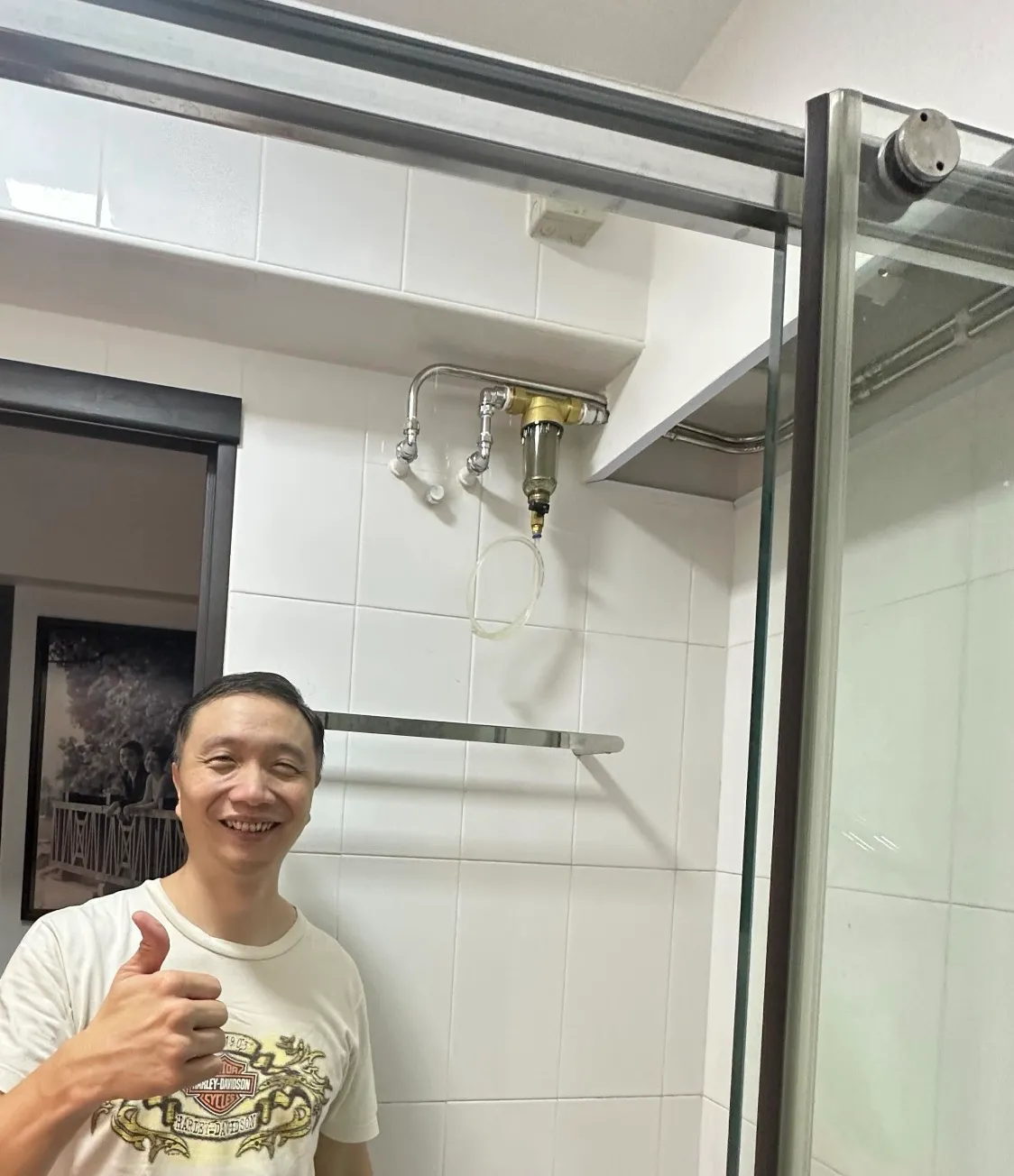

Where can I install my pre filter?

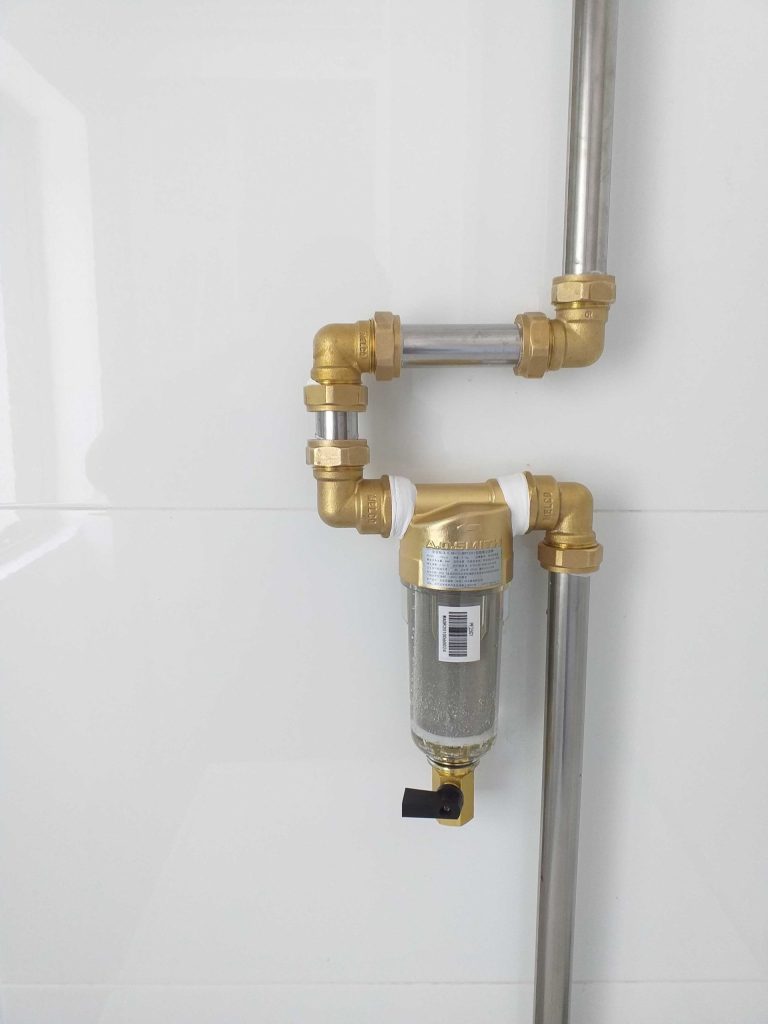

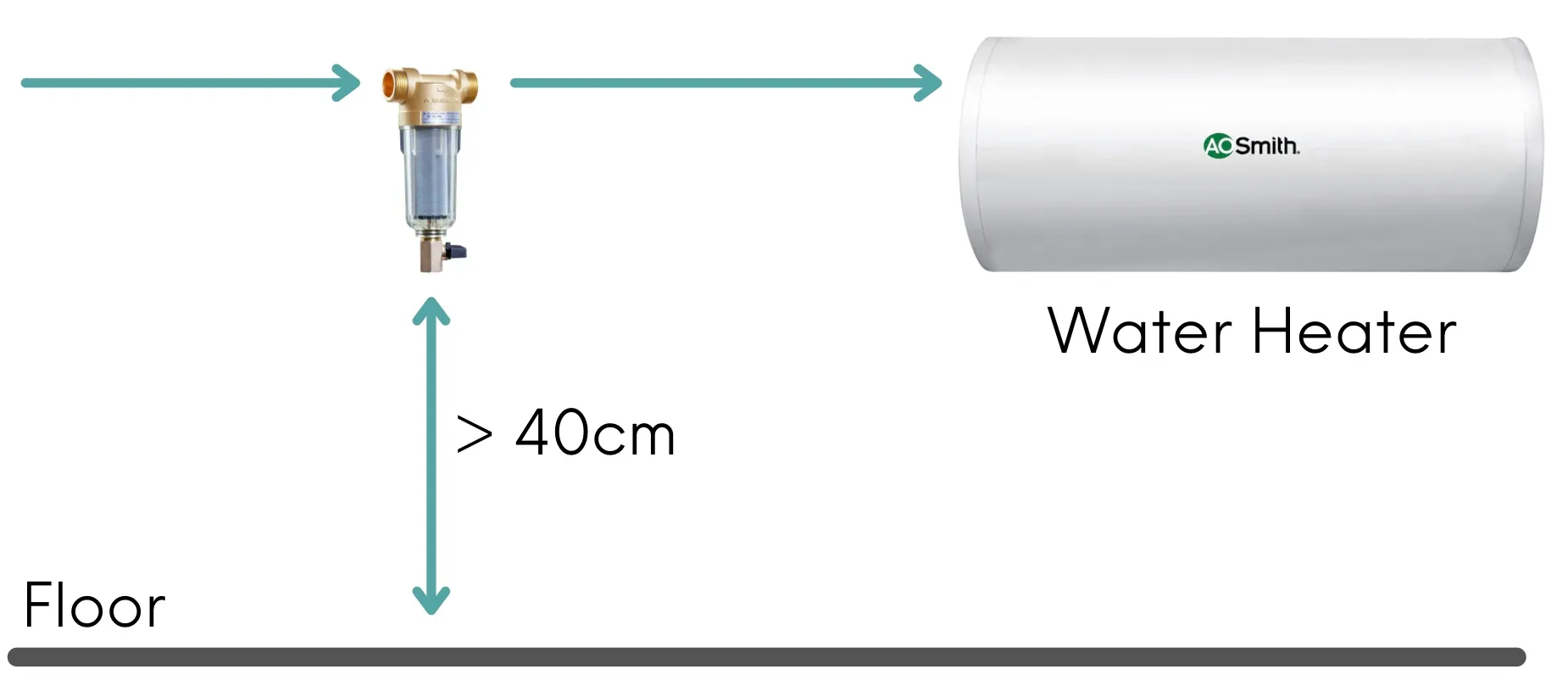

Install the filter on any horizontal pipe before the water heater. Clearance from floor to the bottom of filter should be at least 40cm for easy maintenance.
Pre-filters are also commonly installed under the kitchen sink.
How do I flush my pre filter?
It is easy to flush a pre filter. There are no service packages involved and you can easily flush the filter on your own with a twist valve.
How often should I flush my filter?

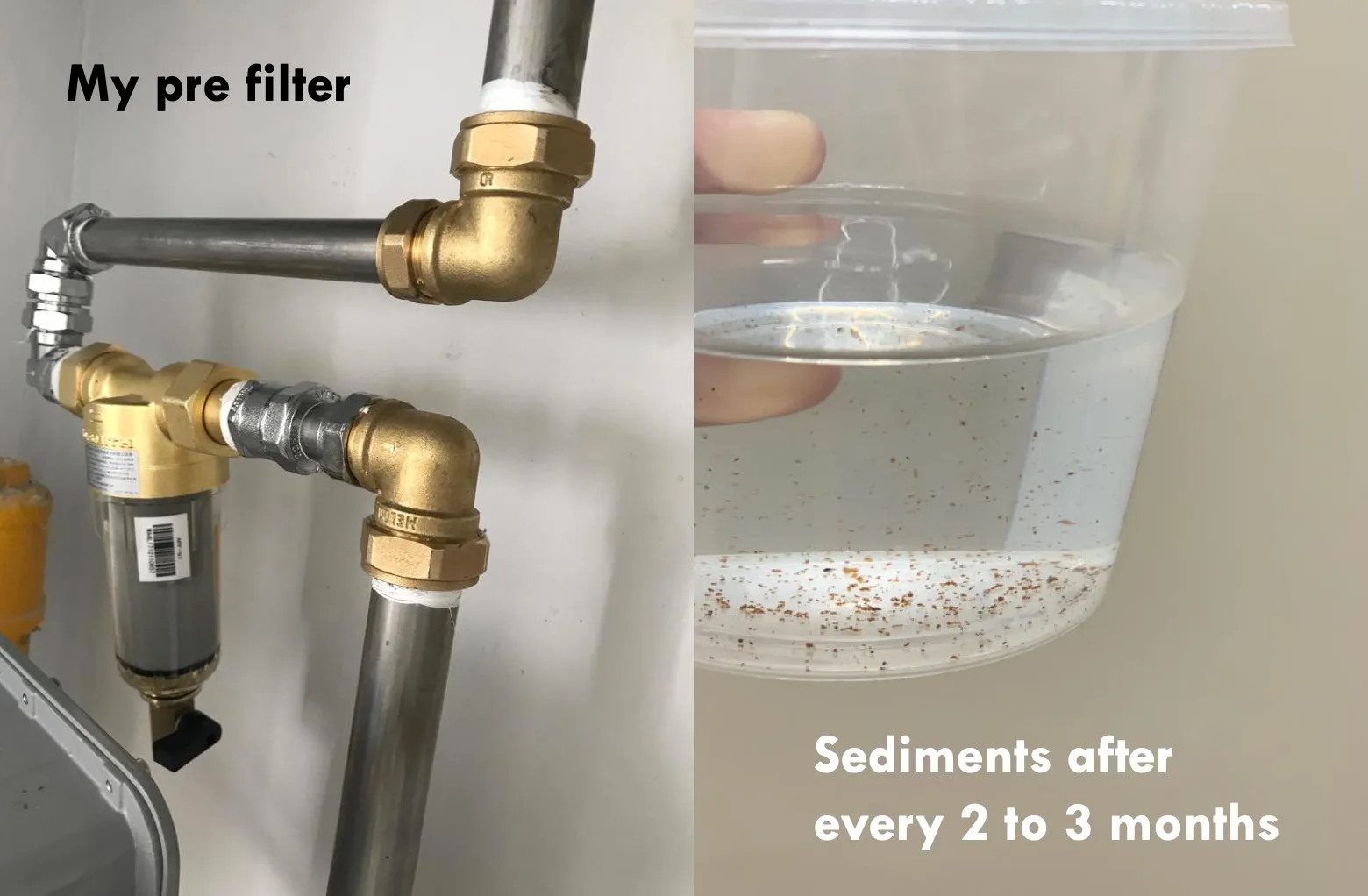

As the casing is clear, you may flush the filter once you see sediments collect in it. Most homeowners in Singapore flush out sediments from their pre filter once every three months.
Tip: place pail below the filter when flushing. You may use the flushed water for washing the floor or watering plants.
Are there any parts that require maintenance?
Unlike foam filters, the stainless steel filter mesh does not need to be changed. It can last several years.

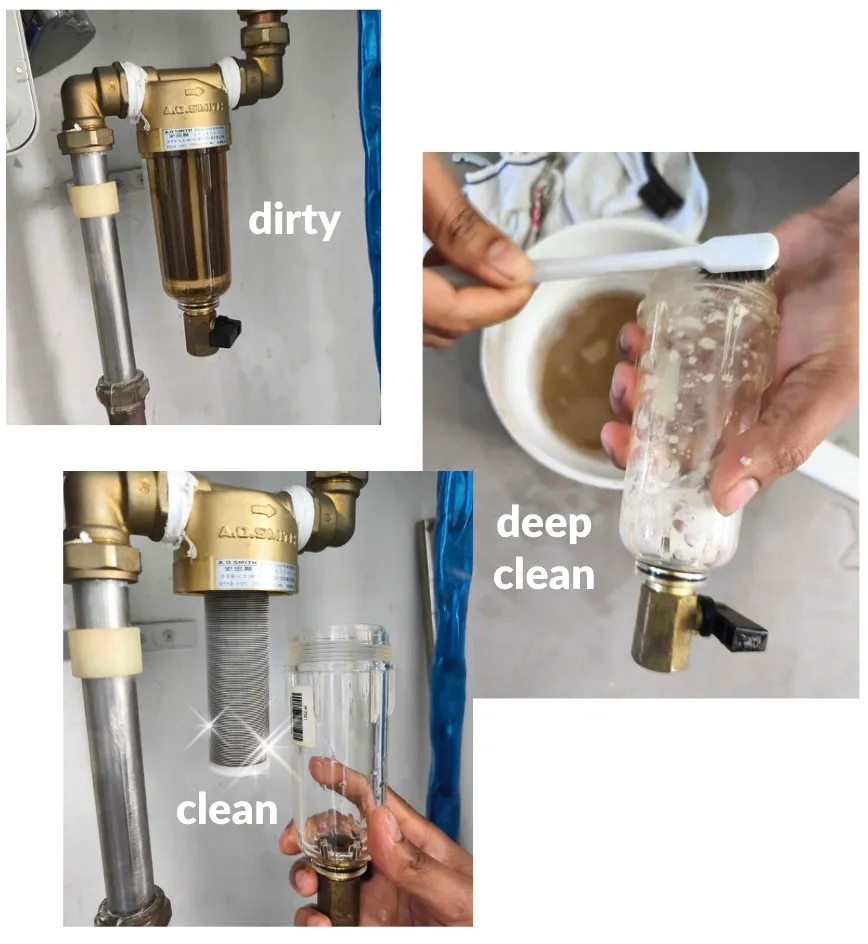

Incoming water pressure flushes out sediments and clears the mesh. You may require a filter scrub every 3 years to remove stubborn particles that have lodged in the mesh.
Will pre filters affect my water pressure?

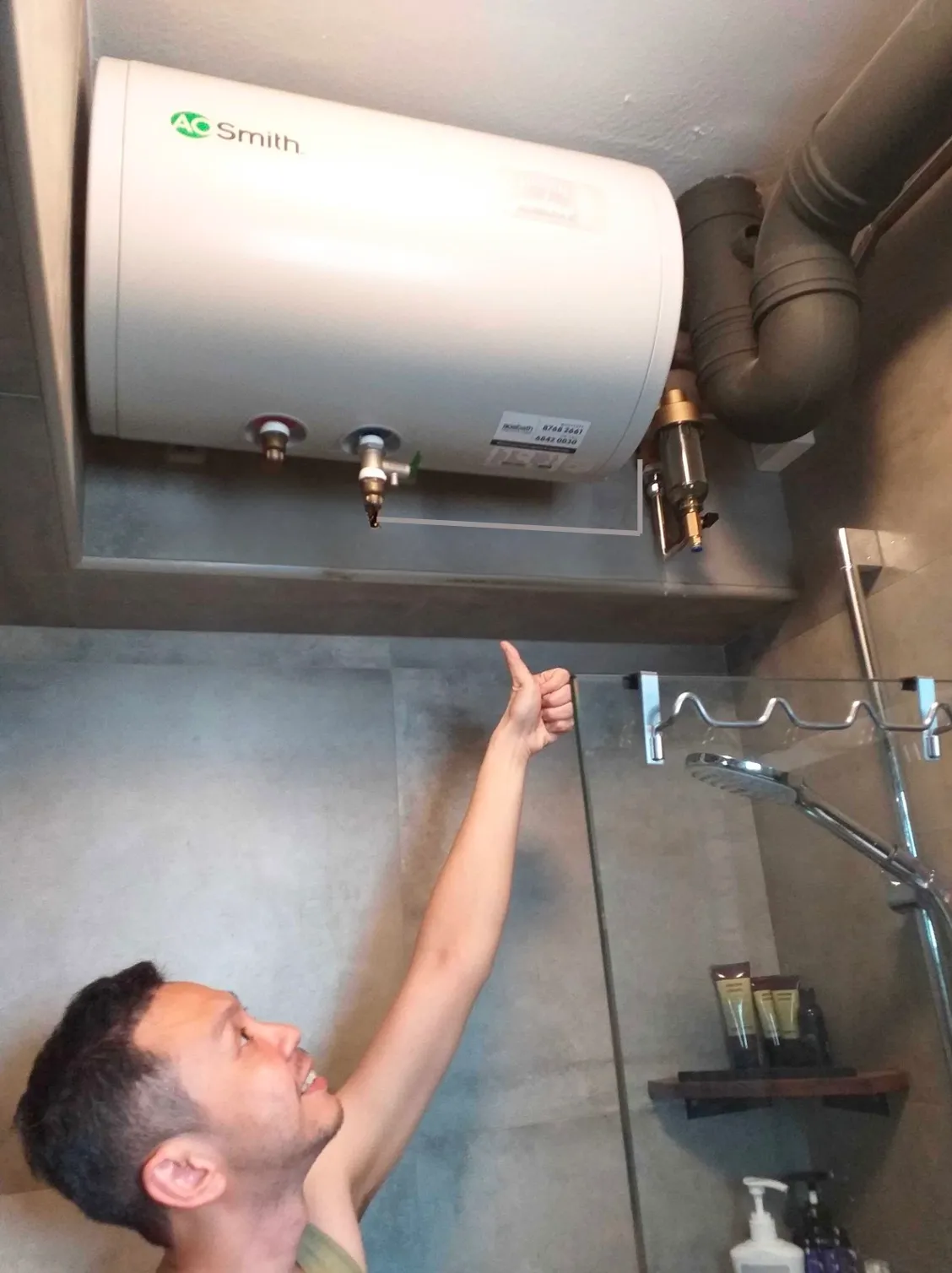

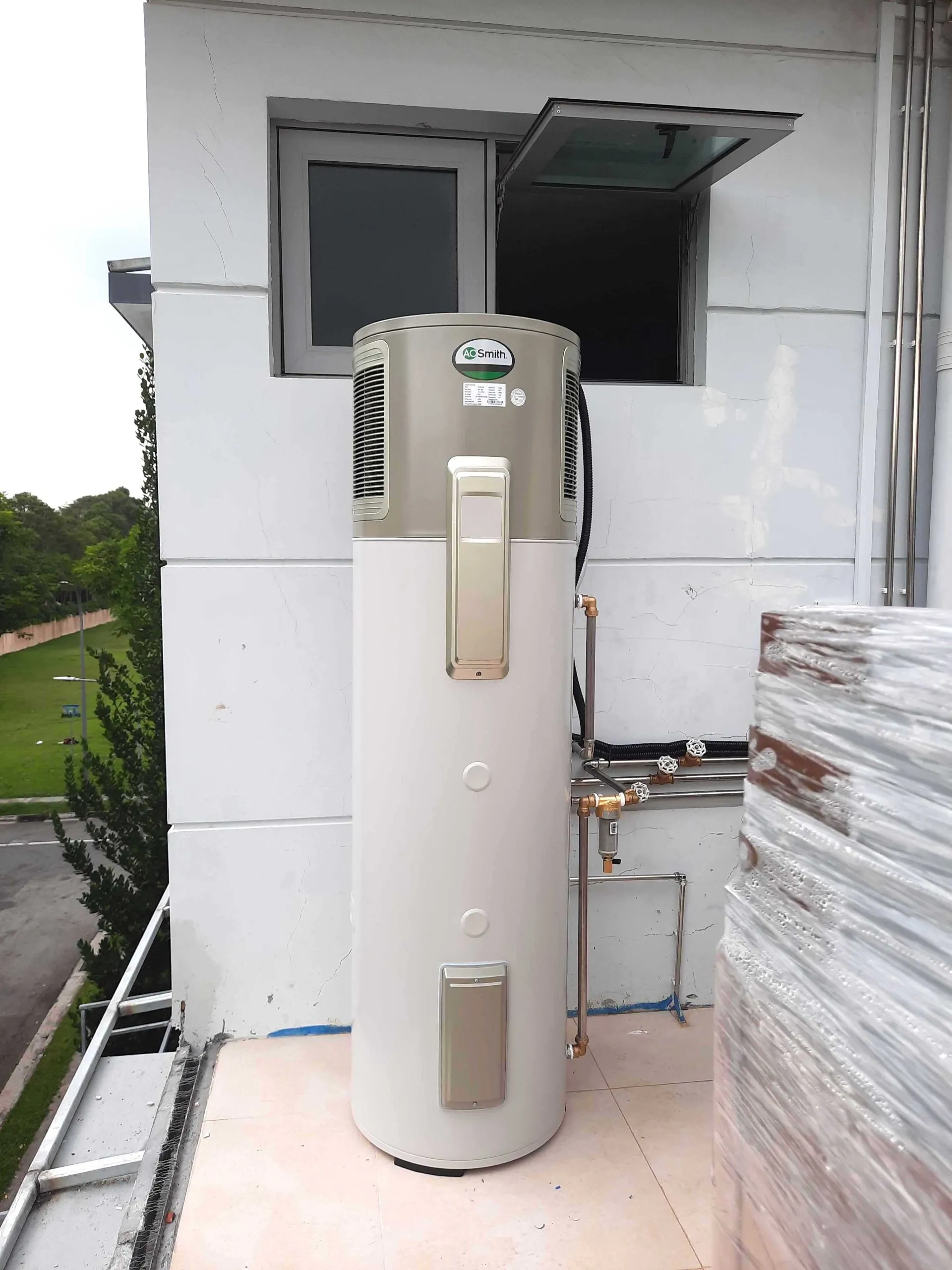

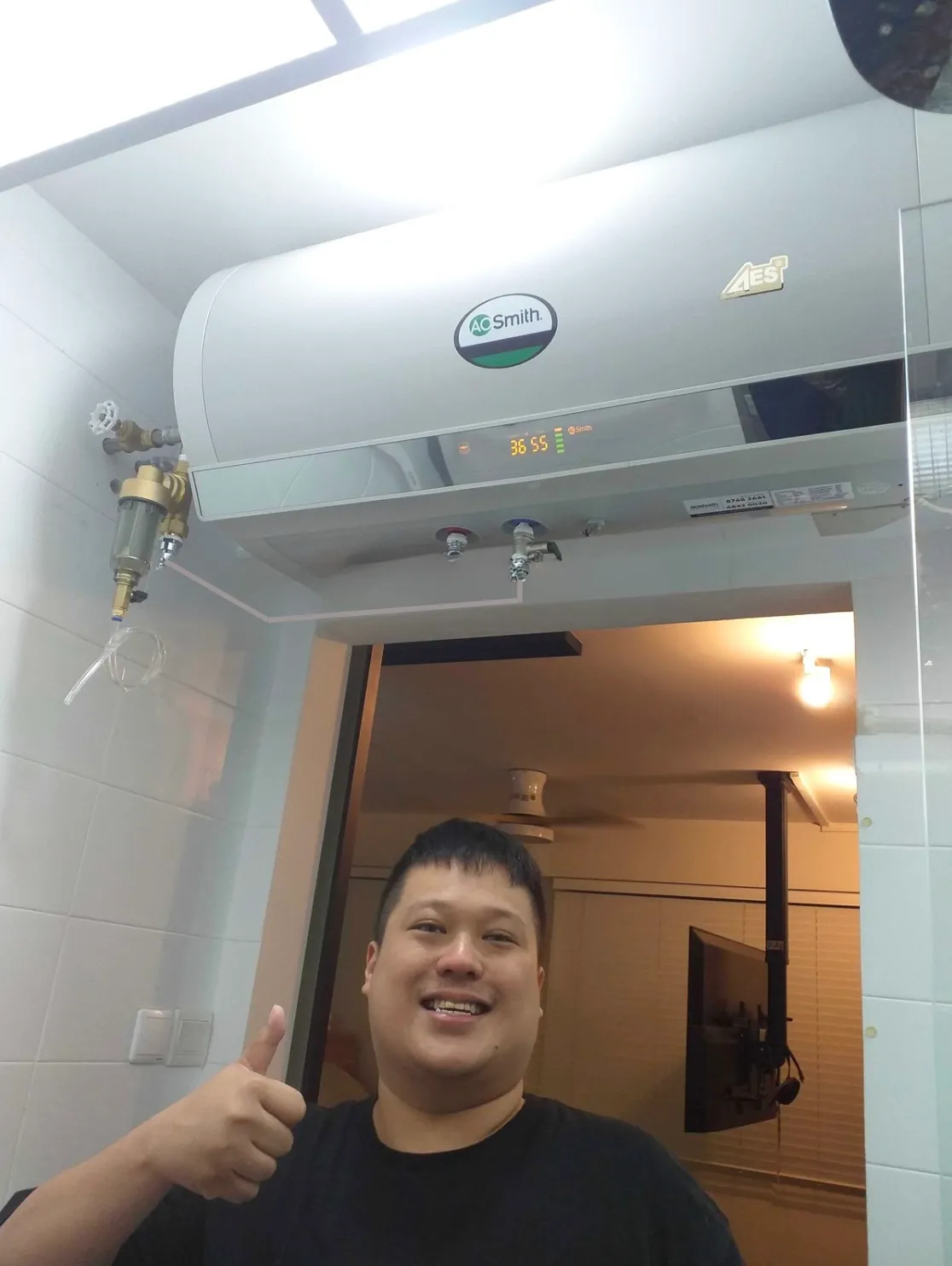

The pre filter (G1 model) can be installed in HDB and landed homes without reducing the water pressure at all.

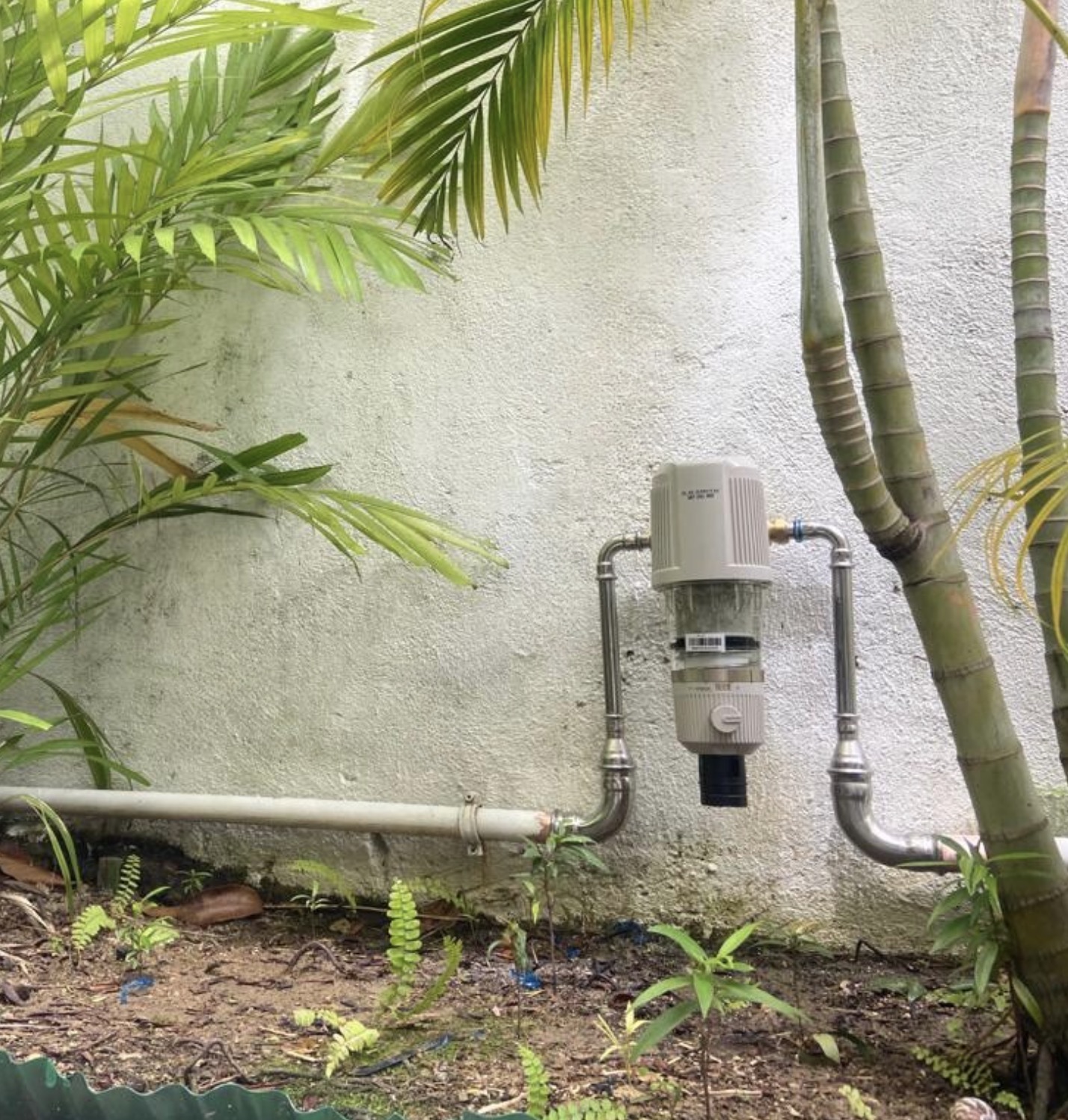

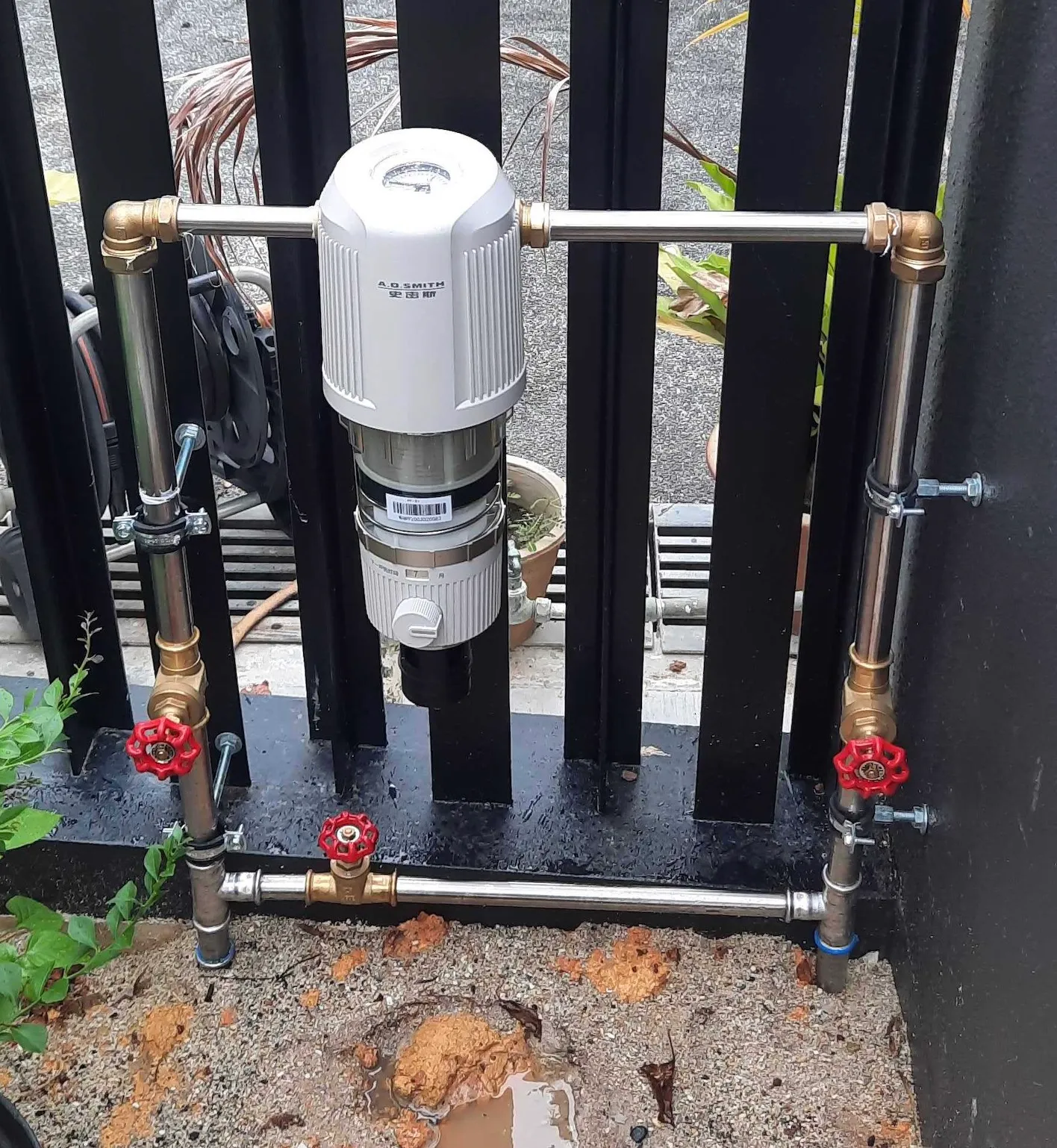

For buildings or large premises, a commercial pre filter (B1 model) with a higher rated pressure should be used.

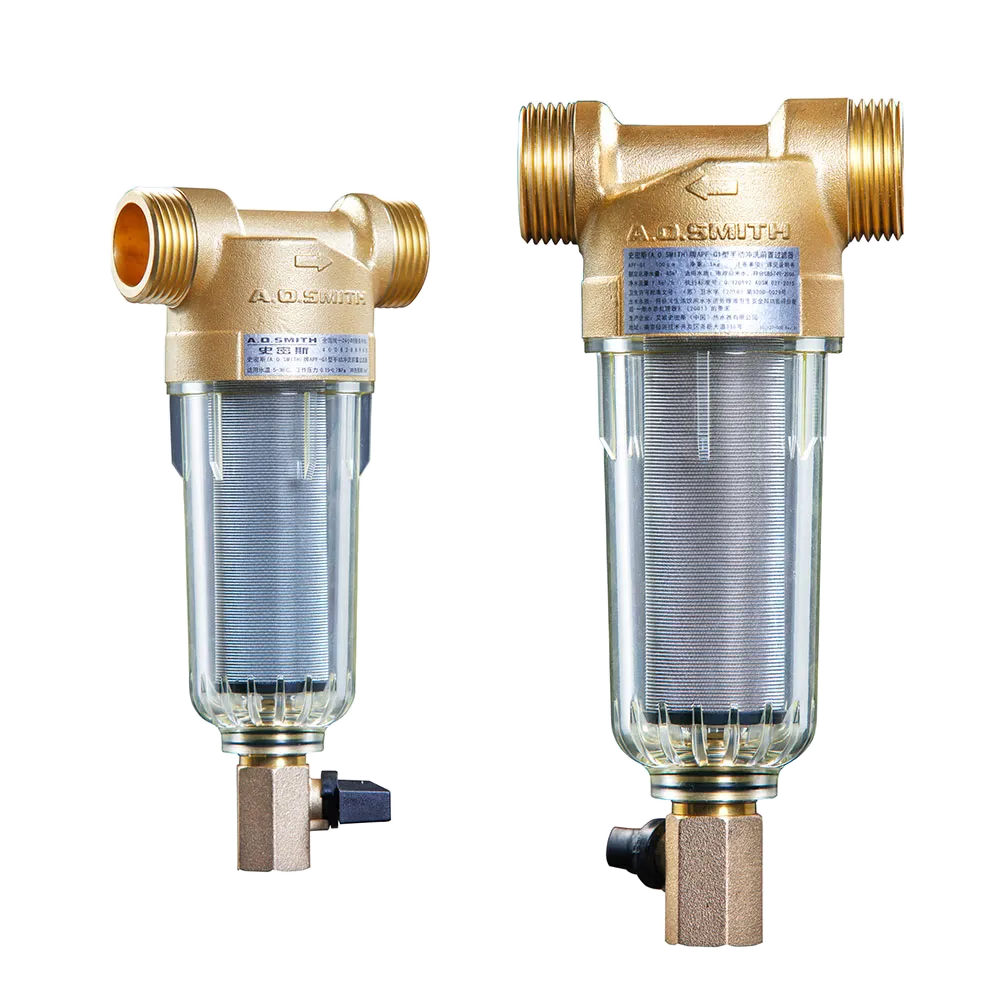

Product Specifications
| MODEL | APF-G1 | APF-B1 |
|---|---|---|
| Image |  |  |
| Dimensions | 158mm (L) x 205mm (W) | 435mm (L) x 186mm (W) |
| Rated pressure | 0.15 ~ 0.7 MPa | 0.15 ~ 1.6 MPa |
| Rated temperature | 5 ~ 38°C | 5 ~ 40°C |
| Inlet/outlet diameter | DN20 | DN25 |
| Flow direction | Straight | Indirect |
| Operation | Manual | Manual |
| Stainless steel filter mesh opening | 100µm | 90µm |
| Cold water flow rate | 25 lit/min | 60 lit/min |
| Rated total water volume | 45m³ | – |
| Recommended time between flush | 2-3 months | 2 months |
